LED Lumisheet
What is the LED Lumisheet?

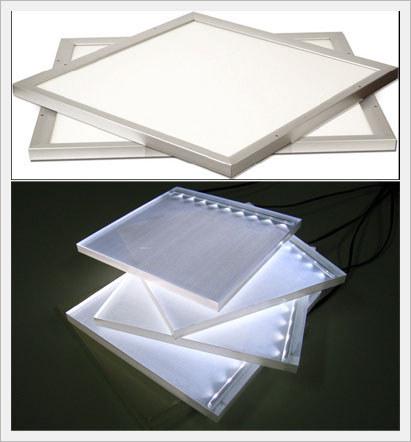

The LED Lumisheet or Light Guide Panel is an ultra-thin, edge-lit lighting panel designed to provide uniform and vibrant illumination across its entire surface.
Unlike traditional light panels, the Lumisheet integrates high-brightness LEDs and heat sink technology directly into the light guide plate, enabling frameless designs and custom shapes.
This innovation makes it an ideal solution for applications requiring sleek aesthetics and consistent lighting performance.
Download Brochure
Key Features of LED Lumisheet
Versatile Applications in Various Settings
Our LED Lumisheet technology adapts seamlessly to diverse commercial settings, providing light that captivates.

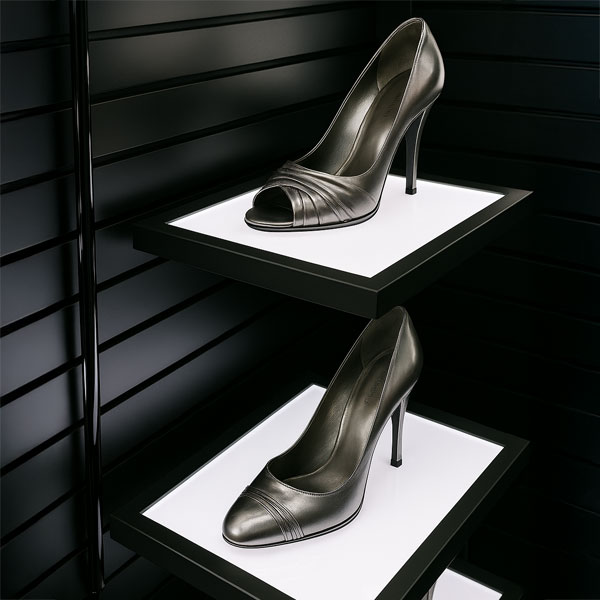

Backlit Retail Displays
SEG Fabric Frames
Lit-Up Block Letters
Edge-Lit Wall Panels
Feature Brand Walls
Framed Window Lighting
Acrylic or Glass Fixtures
Illuminated Brand Signage
Ideal for Diverse Spaces Across Sectors
LED Lumisheets are the lighting panel of choice for premium commercial spaces to enhance guest experiences.
Luxury Retail
For premium brand displays, cosmetics counters, and flagship boutiques.
Hospitality & Lifestyle
Ambient lighting for hotels, upscale restaurants, and concept cafés.
Corporate & Commercial Spaces
For enhanced reception areas, brand walls, and executive showrooms.
Exhibition & Events
Custom light features for trade shows, galleries, and exhibitions.
Technical Specifications
| Color Temperatures | 3000K Warm White |
4000K Neutral White |
5300K Pure/Cool White |
6500K Daylight |
|---|---|---|---|---|
| Power Consumption | Standard LEDs: 4W/ft | High Output LEDs: 5W/ft | ||
| Panel Thickness | 8mm | |||
| Custom Sizes (W x L) |
Minimum: 50mm x 50mm | Maximum: 1499mm x 2997mm | ||
| Mounting Options | Wall-Mount, Z-Clip, U-Channel, Standoffs | |||
| Input Voltage | 12V DC | |||
| Connectors | Barrel Plug, Molex, or Open-End | |||
| Environment | Indoor Dry Locations | |||
